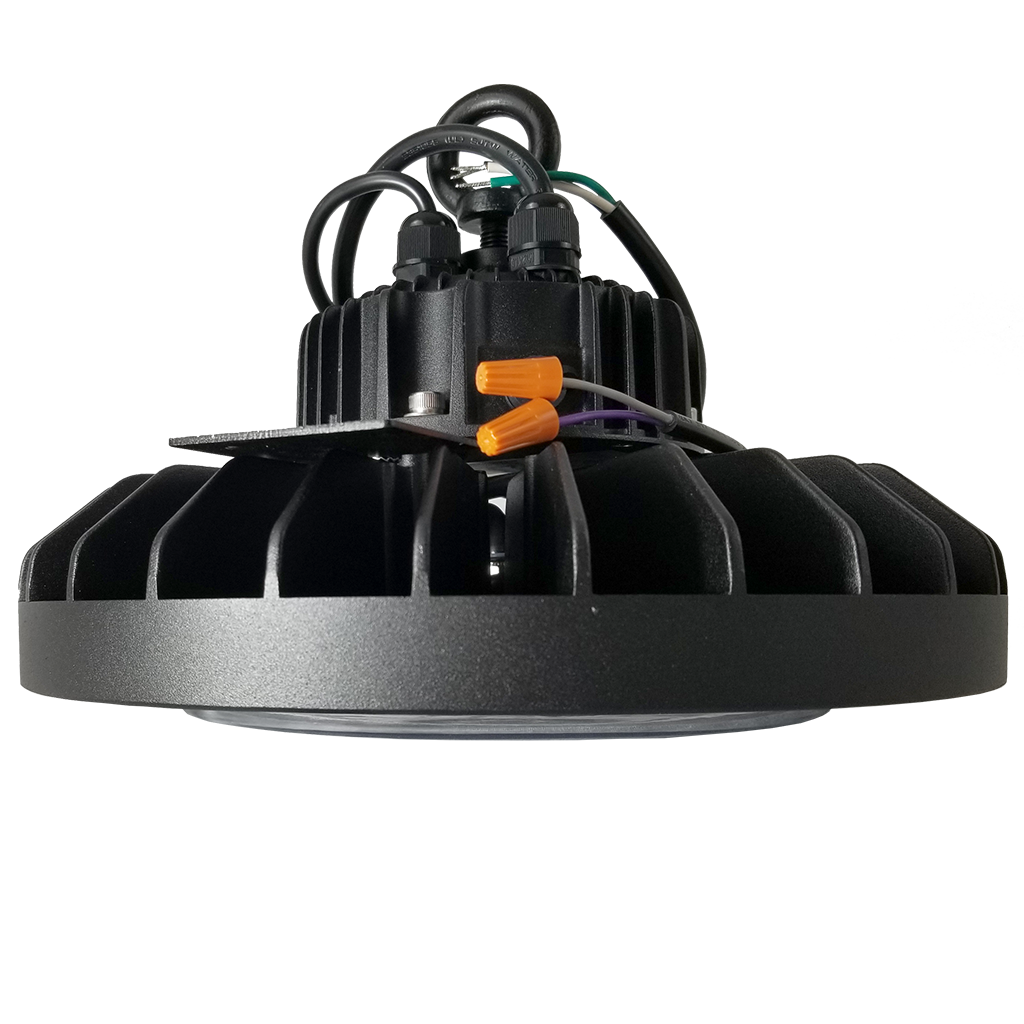

100 Watt Dimmable UFO LED High Bay | Platinum+ Series | 18,000 Lumens, 4000k (Cool White), 120-277 Volt – Touch-Plate LED

100 Watt Dimmable UFO LED High Bay | Platinum+ Series | 18,000 Lumens, 4000k (Cool White), 120-277 Volt

SKU: HBS-180-100-40U-BRD-F1

1-3 Business Days Processing Time On All Orders

Need it sooner? Contact our sales team (260)426-1565!

$144.90/ea

Availability: 8 in stock

save or share this page

Product Overview

Touch-Plate’s Slimline High Bay was designed to provide higher lumens and even light distribution. Using up to 70% less power over traditional metal halide or high pressure sodium lighting. Our Slimline High Bay is optimal for any application that requires a High Bay.



Touch-Plate Model #: HBS-180-100-40U-BRD-F1
HIGHLIGHTS:

• Instant Start

• No Flickering or Humming

• Uniform Light Distribution

• Isolated Round Driver

Accessories: (call to order)

• Emergency Back up
• Occupancy Sensor
• ZigBee: Relay, Dimmer, and/or Controller

Mounting Kits & Tools: (call to order)

• Stainless Steel Cable: 2 ft / 3 ft / 7 ft / 10 ft / 20 ft
• Lock Twist Plug: 3 ft / 10 ft
• (US Standard) 3-Prong Plug: 7 ft
• No Plug Extension: 3 ft / 10 ft
• S Hook Clip: Medium / Large
• Connection Box: Small / Large
• 3-Pin Splice Connector

DOCUMENTATION

Specification Sheet:
Photometrics:

FEATURES

CERTIFICATIONS

TOUCH-PLATE'S LED GUARANTEES

shipping-badge
SSL-secure-square
support-badge

specifications

PRODUCT DETAILS

Manufacturer Part Number:

HBS-180-100-40U-BRD-F1

DLC Listed:

Yes

Manufacturer:

Touch-Plate

UL Listed:

Yes

Warranty:

5 Years (Limited Liability)

ETL Listed:

-

Rated Hours:

50,000 hours

LIGHT OUTPUT

Lumens: (total brightness)

18000 lm

Color Temperature: (CCT)

-

Wattage: (energy consumption)

100w

CRi: (color accuracy)

>80Ra

Lumens per Watt: (lm/w)

180 lm/w

Lens Type:

Clear Glass

Equivalent Replacement: (non-led)

300w HID/HPS/MH

Beam Angle:

110°

FEATURES

Lamp Type:

LED

Product Color:

Black

LED Chipset:

SMD 2835

Product Material:

Die-cast Aluminum Housing

Dimmable:

0-10v Dimming

PF Rating: (power factor)

>0.9

Input Voltage:

120-277v

IP Rating: (water proofing)

IP65

Minimum Operating Temperature:

-

IK Rating: (surge protection)

-

Maximum Operating Temperature:

-

Special Features:

• Instant Start

• No Flickering or Humming

• Uniform Light Distribution

• Isolated Round Driver

DIMMENSIONS

Height:

7.4 in

Diameter:

11.02 in

Width:

-

Length:

-

Weight:

7.7 lbs
