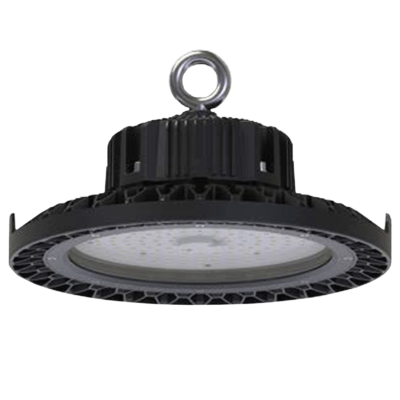

240 Watt UFO LED High Bay | Platinum Series | 31,200 Lumens, 5000K (Daylight), 120-277 Volts

SKU: HBS-312-240-50U-BR-L1

Availability: 7 in stock

save or share this page
Share on facebook
Share on linkedin
Share on twitter
Share on reddit
Share on email
Share on print

Product Overview

 Touch-Plate’s Platinum Series 240 Watt LED UFO High Bay is designed for any medium to large environment. With energy savings of 70% or greater over traditional lighting. Touch-Plate’s UFO High Bay LED Lights are optimal for both retrofit upgrade projects or new installations.

Touch-Plate’s LED Model: HBS-312-240-50U-BR-L1

is a 240 Watt, Round LED UFO High Bay. It provides 31,200 Lumens of Light at 5000k (Daylight]) Color Temperature.

Features:
  • Instant Start
  • No Flickering or Humming
  • Uniform Light Distribution
  • Isolated Round Driver
  • UL & DLC Premium Listed
  • 50,000 Hour Rated
  • 5 Year Limited Warranty
Accessories: (call to order)
  • Wire Guard
  • Diffuser
  • Occupancy Sensor
  • Photocontrol Sensor
  • Zigbee: Relay, Dimmer, Controller
  • Stainless Steel Cable: 2 feet / 3 feet / 7 feet / 10 feet / 20 feet
  • Twist Lock Plug: 3 feet / 10 feet
  • No Plug Extension: 3 feet / 10 feet
  • USA 3 Prong Plug: 7 feet
  • S Hook Clip: Medium / Large
  • Connection Box: Small / Large
  • Connector: 3-Pin Splice

DOWNLOADS

Specification Sheet:
Photometrics:

COLOR TEMPERATURE

CERTIFICATIONS

TOUCH-PLATE'S LED GUARANTEES

specifications

PRODUCT DETAILS

Manufacturer Part Number:

HBS-312-240-50U-BR-L1

DLC Listed:

Yes

Manufacturer:

Touch-Plate

UL Listed:

Yes

Warranty:

5 Years (Limited Liability)

ETL Listed:

-

Rated Hours:

50,000 hours

LIGHT OUTPUT

Lumens: (total brightness)

31200 lm

Color Temperature: (CCT)

5000k (Daylight)

Wattage: (energy consumption)

240w

CRi: (color accuracy)

>80Ra

Lumens per Watt: (lm/w)

140 lm/w

Lens Type:

Clear Glass

Equivalent Replacement: (non-led)

600w HID/HPS/MH

Beam Angle:

120°

FEATURES

Lamp Type:

LED

Product Color:

Black

LED Chipset:

SMD 3030

Product Material:

Die-cast Aluminum Housing

Dimmable:

None

PF Rating: (power factor)

>0.9

Input Voltage:

120-277v

IP Rating: (water proofing)

IP65

Minimum Operating Temperature:

-

IK Rating: (surge protection)

IK08

Maximum Operating Temperature:

-

Special Features:

• Instant Start

• No Flickering or Humming

• Uniform Light Distribution

• Isolated Round Driver

DIMENSIONS

Height:

7.08 in

Diameter:

15.35 in

Width:

-

Length:

-

Weight:

16.4 lbs
