45 Watt 2×2 Panel LED Lights [4-PACK] I Platinum Series I 5,600 Lumens, 4000k (Cool White) – Touch-Plate LED

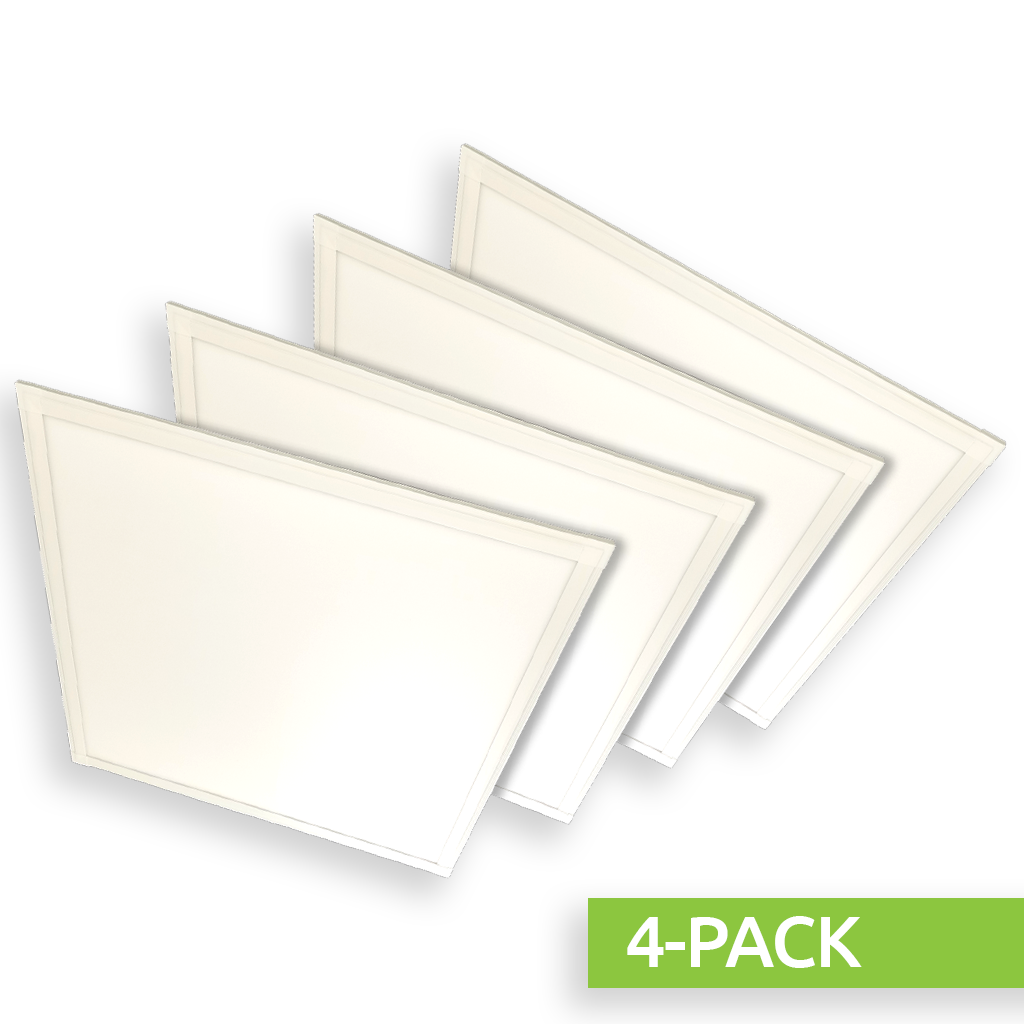

45 Watt 2×2 Panel LED Lights [4-PACK] I Platinum Series I 5,600 Lumens, 4000k (Cool White)

SKU: P22-056-045-40U-J4-4P

1-3 Business Days Processing Time On All Orders

Need it sooner? Contact our sales team (260)426-1565!

4-Pack, 5600 Lumens, 40 Watt, 4000k (Cool White), 120-277 Volts

$156.00/ea

Availability: 2 in stock

save or share this page

Product Overview

Touch-Plate’s Platinum Series 45 Watt 2×2 Panel LED Light is designed to offer even and uniform light distribution, more lumens and highest cost savings.  Our 45 Watt 2×2 Panel Light can offer an energy savings of 70% or more over traditional T12/T8 Troffer Lighting. Touch-Plate’s Indoor LED Lights are quick and easy to install and perfect for both retrofit installations and new construction installations

Features:
  • Aluminum/Alloy frame for heat dissipation
  • Flicker Free
  • Isolated driver
  • Multiple mounting options
  • UL & DLC Listed
  • 5 Year Limited Warranty (Lifetime 50,000 hours)
Specifications:
  • Wattage: 45w
  • Lumens: 5,200LM (approx. > 130lm/w)
  • Equivalence: 100w HID/HPS/MH
  • IP Rating: IP20
  • LED Chips: Jufei 2835
  • PF: >0.90
Dimensions:
  • Weight: 10.31 lbs
  • Length: 23.70 in
  • Width: 23.70 in
  • Height:
    • Junction Box: 1.80 in
    • Without Junction Box: 0.38 in

Need to surface mount?  Here’s a link to the our mounting kit for this product. (not included)

2×2 Panel Surface Mount Kit

Additional Options: (Custom Ordering Only)
  • Color Choices:
    • White (Standard)
    • Silver
  • Lens Options
    • Milky PC (Standard)
  • Beam Angle
    • 120° Beam Angle (Standard)
Accessories: (Sold Separately)
  • Emergency Backup
  • 0-10v Dimming
  • Occupancy Sensor
  • Zigbee Relay, Dimmer and/or Controller
  • Surface Mount Kit
  • Flush Mount Kit
  • Stainless Steel Cable: 2 feet (.5 meters), 3 feet (1 meters), 7 feet (2 meters), 10 feet (3 meters), or 20 feet (6 meters)
  • No Plug Ex tension: 3 feet (1 meters) or 10 feet (3 meters)
  • S Hook Clip: Medium & Large
For Commercial & Residential Customers:

Outdated Lighting?  You are handing money to the power company every month! Do you gain anything from that?

The LED was invented to finally replace outdated 100 year old technology that you still find in hardware stores and major retailers. Recent studies show that (*based on LED type) an annual energy savings of 60-80% can be achieved!  The result, most of our LED Lights paid for themselves in under 2 years!

Working on a larger project? LED Rebates (provided by the power companies) are avaliable for both New Construction and Retrofit Installations.  Best part yet, we will file the paperwork for you!  Minimal effort from you and the road to savings starts today.

Find LED Lights confusing? Unsure what type you need?  The jargon and changes can be overwhelming! However, our staff has an in-depth understand of both our product and its application.  We gladly work with both Contractors, Distributors & DIY Homeowners.

Need Expert Technical Help? Our customers can schedule time with our staff engineer or owner for expert level service.  We want to help you step into the light of LED!

Make the jump to LED today! The longer you wait the more you miss out.

Touch-Plate Model #: P22-056-045-40U-J4-4P
HIGHLIGHTS:

• Flicker free

• Isolated driver

• Multiple mounting options

• Lifetime of 50,000 hrs or greater

• 5 Year Limited Warranty

Accessories: (call to order)

• Emergency Back up
• Occupancy Sensor
• ZigBee: Relay, Dimmer, and/or Controller

Mounting Kits & Tools: (call to order)

• Flush Mounting Kit
• Surface Mounting Kit
• Stainless Steel Cable: 2 ft / 3 ft / 7 ft / 10 ft / 20 ft
• No Plug Extension: 3 ft / 10 ft
• S Hook Clip: Medium / Large

DOCUMENTATION

Specification Sheet:
Photometrics:

FEATURES

icon.4000k

CERTIFICATIONS

TOUCH-PLATE'S LED GUARANTEES

shipping-badge
SSL-secure-square
support-badge

specifications

PRODUCT DETAILS

Manufacturer Part Number:

P22-056-045-40U-J4-4P

DLC Listed:

Yes

Manufacturer:

Touch-Plate

UL Listed:

Yes

Warranty:

5 Years (Limited Liability)

ETL Listed:

-

Rated Hours:

50,000 hours

LIGHT OUTPUT

Lumens: (total brightness)

5600 lm

Color Temperature: (CCT)

4000k (Cool White)

Wattage: (energy consumption)

45w

CRi: (color accuracy)

-

Lumens per Watt: (lm/w)

115 lm/w

Lens Type:

Milky PC

Equivalent Replacement: (non-led)

100w HID/HPS/MH

Beam Angle:

120°

FEATURES

Lamp Type:

LED

Product Color:

White

LED Chipset:

Jufei 2835

Product Material:

Aluminum/Alloy frame

Dimmable:

None

PF Rating: (power factor)

>.90

Input Voltage:

120-277v

IP Rating: (water proofing)

IP20

Minimum Operating Temperature:

-

IK Rating: (surge protection)

-

Maximum Operating Temperature:

-

Special Features:

• Flicker free

• Isolated driver

• Multiple mounting options

• Lifetime of 50,000 hrs or greater

• 5 Year Limited Warranty

DIMMENSIONS

Height:

1.8 in

Diameter:

-

Width:

23.70 in

Length:

23.70 in

Weight:

10.31 lbs
