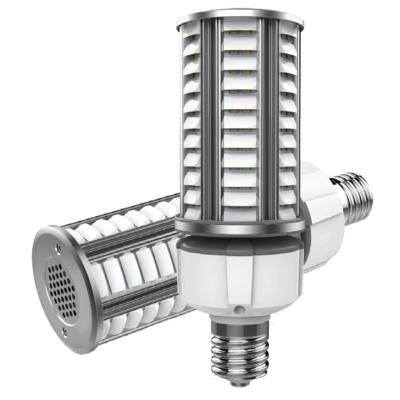

110 Watt Expanding Area LED Bulb | Silver Series | 13,200 Lumen, 4000k (Cool White), 120-277 Volt, Base: E39

SKU: EAL-132-110-40U-3-G2

1-3 Business Days Processing Time On All Orders

Need it sooner? Contact our sales team (260)426-1565!

$91.25/ea

Availability: 12 in stock

LOW INVENTORY: ACT NOW BEFORE IT'S TOO LATE!

save or share this page

Product Overview

Touch-Plate’s Silver Series 110 Watt Expanding Area Lights are designed to offer better security, more lumens, and higher cost savings. Our Expanding Area Lights can offer energy savings of 70% or greater over traditional metal halide or high-pressure sodium lighting. Our LEDs are optimal for both new construction and retrofit installation.



Touch-Plate Model #: EAL-132-110-40U-3-G2
HIGHLIGHTS:

• Cooling Heatsink Fins

• 6kv Surge Protection

• Flame retardant material

Accessories: (call to order)

Not Available for this Product

Mounting Kits & Tools: (call to order)

Not Available for this Product

DOCUMENTATION

Specification Sheet:
DOWNLOAD .PDF
Photometrics:
NOT AVAILABLE

FEATURES

icon.4000k

CERTIFICATIONS

TOUCH-PLATE'S LED GUARANTEES

shipping-badge
SSL-secure-square
support-badge

Related Products

Related products

specifications

PRODUCT DETAILS

Manufacturer Part Number:

EAL-132-110-40U-3-G2

DLC Listed:

Yes

Manufacturer:

Touch-Plate

UL Listed:

Yes

Warranty:

5 Years (Limited Liability)

ETL Listed:

-

Rated Hours:

50,000 hours

LED BULB & TUBE DETAILS

Bulb Type:

LED Bulb

Base Type:

E39 (Mogul)

LED Tube Features:

E39 (Mogul)

LIGHT OUTPUT

Lumens: (total brightness)

13,200 lm

Color Temperature: (CCT)

4000k (Cool White)

Wattage: (energy consumption)

110w

CRi: (color accuracy)

>80Ra

Lumens per Watt: (lm/w)

120 lm/w

Lens Type:

CLEAR PC

Equivalent Replacement: (non-led)

400w HID/HPS/MH

Beam Angle:

180°

FEATURES

Lamp Type:

LED

Product Color:

White

LED Chipset:

LG 5630

Product Material:

Aluminum / Plastic

Dimmable:

None

PF Rating: (power factor)

>.90

Input Voltage:

120-277v

IP Rating: (water proofing)

IP68

Minimum Operating Temperature:

-

IK Rating: (surge protection)

-

Maximum Operating Temperature:

-

Special Features:

• Cooling Heatsink Fins

• 6kv Surge Protection

• Flame retardant material

DIMMENSIONS

Height:

-

Diameter:

-

Width:

9 in

Length:

11.09 in

Weight:

1.4 lbs
